 NBET-III-532-R/1~100mW

 SINGLE LONGITUDINAL MODE GREEN LASER AT 532 nm

All solid state single longitudinal mode green laser at 532 nm is designed especially for Raman Spectrograph, which has the features of narrow spectral linewidth, high power stability, high wavelength stability and easy operating. They also can be used for sensing and biomedical applications.

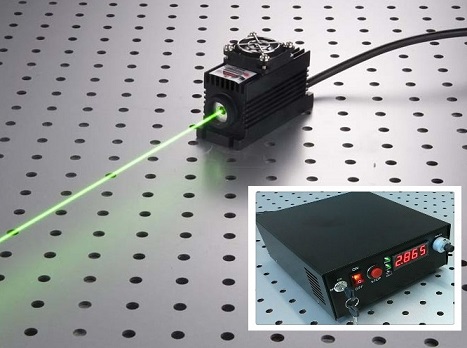

產(chǎn)品圖片

技術參數(shù)

Wavelength (nm) 532±1

Output power (mW) >1,5,10,20…100

Transverse mode TEM00

Central wavelength stability (rms, over 2 hours) (pm) <10

Longitude mode Single

Operating mode CW

Power Stability (rms, over 4 hours) <1%,<3%,<5%

Warm-up Time (minutes) <10

M2 factor <1.2

Beam divergence,full angle (mrad) <1.2

Beam Diameter at the aperture (mm) ~1.2

Beam height from base plate (mm) 24.8

Spectral linewidth (nm) < 0.00001

Pointing stability after warm-up (mrad) <0.05

Noise of amplitude (rms,1~20MHz) <0.5%

Coherence length (m) >50

Polarization ratio > 100:1

Power supply (90-264VAC) PSU-III-FDA

Modulation Modulation isn’t available

Operating temperature(℃) 10~35

Weight of driver (kg) 1.2

Expected lifetime (hours) 10000

Warranty 1 year
